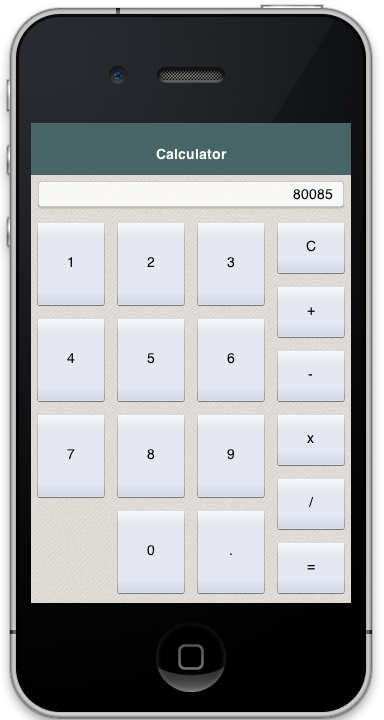

This is a simple demo of a functional calculator native mobile application. It is written using Codename One, and can be deployed as a native Android, iOS, Windows Phone, J2ME, BlackBerry, Web, Mac, or Windows App.

The code is as follows:

  1. package com.codename1.demos.calculator;
  2.
  3.
  4. import com.codename1.ui.Button;
  5. import com.codename1.ui.Component;
  6. import com.codename1.ui.Container;
  7. import com.codename1.ui.Display;
  8. import com.codename1.ui.Form;
  9. import com.codename1.ui.TextField;
  10. import com.codename1.ui.layouts.BorderLayout;
  11. import com.codename1.ui.layouts.GridLayout;
  12. import com.codename1.ui.plaf.UIManager;
  13. import com.codename1.ui.util.Resources;
  14. import java.io.IOException;
  15.
  16. /**
  17.  * This is a demo Calculator app that performs simple Math. Its purpose
  18.  * is to demonstrate how to create a simple yet functional GUI in a mobile
  19.  * application that runs on iOS, Android, Javascript,
  20.  * @author shannah
  21.  */
  22. public class Calculator {
  23.
  24. private Form current;
  25.
  26. private Resources theme;
  27.
  28. /**
  29.   * The current operation
  30.   * '+', '-', '*', or '/'
  31.   */
  32. private char op;
  33.
  34. /**
  35.   * The current calculated value
  36.   */
  37. private double currVal;
  38.
  39. /**
  40.   * The input field
  41.   */
  42. TextField inputField;
  43.
  44. /**
  45.   * Flag to indicate that the value has just been reset
  46.   */
  47. boolean reset = true;
  48.
  49. /**
  50.   * Flag to indicate that input mode is to append digits.
  51.   * If false, the next digit pressed will replace whatever
  52.   * is in the input field.
  53.   */
  54. boolean appendDigits = false;
  55.
  56. public void init(Object context) {
  57. try {
  58. theme = Resources.openLayered("/theme");
  59. UIManager.getInstance().setThemeProps(theme.getTheme(theme.getThemeResourceNames()[0]));
  60. } catch(IOException e){
  61. e.printStackTrace();
  62. }
  63.
  64. }
  65.
  66. /**
  67.   * Clears the current calculation.
  68.   */
  69. private void clear() {
  70. inputField.setText(String.valueOf(0));
  71. op = 0;
  72. currVal = 0;
  73. reset = true;
  74. appendDigits = false;
  75. }
  76.
  77. /**
  78.   * Executes the calculation given the most recent operation that
  79.   * was pressed and displays the value in the input field.
  80.   */
  81. private void exec() {
  82.
  83. double a = Double.parseDouble(inputField.getText());
  84. if (reset) {
  85. currVal = a;
  86. return;
  87. } else {
  88. switch (op) {
  89. case '+': currVal += a; break;
  90. case '-': currVal -= a; break;
  91. case '*': currVal *= a; break;
  92. case '/': currVal /= a; break;
  93. }
  94. }
  95. inputField.setText(String.valueOf(currVal));
  96. appendDigits = true;
  97.
  98. }
  99.
  100. /**
  101.   * Appends the given digit to the input field.
  102.   * @param digit
  103.   */
  104. private void append(int digit) {
  105. String s = digit >= 0 ? String.valueOf(digit) : ".";
  106. if (appendDigits) {
  107. inputField.setText(inputField.getText()+s);
  108. } else {
  109. inputField.setText(s);
  110. appendDigits = true;
  111. }
  112. }
  113.
  114. /**
  115.   * Sets the current operation, and executes it.
  116.   * @param op
  117.   */
  118. private void setOp(char op) {
  119. exec();
  120. this.op = op;
  121. this.reset = false;
  122.
  123. appendDigits = false;
  124.
  125. }
  126.
  127. public void start() {
  128. if (current != null) {
  129. current.show();
  130. return;
  131. }
  132. // Create the calculator form
  133. Form f = new Form("Calculator");
  134. f.setLayout(new BorderLayout());
  135.
  136. // The input field placed in the north section
  137. inputField = new TextField();
  138. inputField.getDisabledStyle().setAlignment(Component.RIGHT);
  139. inputField.setEnabled(false);
  140. inputField.setText(String.valueOf(0));
  141. f.addComponent(BorderLayout.NORTH, inputField);
  142.
  143.
  144. // We place the numbers in a GridLayout with 4 rows and 3 columns.
  145.
  146. Container numbers = new Container();
  147. numbers.setLayout(new GridLayout(4,3));
  148.
  149. // We'll set up the digits as integers. Only non-negative ints
  150. // will result in a button being placed for it.
  151. int digits[] = {1,2,3,4,5,6,7,8,9,-1,0};
  152. for (int i=0; i<digits.length; i++) {
  153. int digit = digits[i];
  154. if (digit >= 0) {
  155. Button digitButton = new Button(String.valueOf(digit));
  156.
  157. // Add action listener to digit button which appends
  158. // the current digit to the input.
  159. digitButton.addActionListener((e) -> {append(digit);});
  160. numbers.addComponent(digitButton);
  161. } else {
  162. // If the digit was negative, we just want an empty space in the
  163. // grid.
  164. Container c = new Container();
  165. numbers.addComponent(c);
  166. }
  167. }
  168.
  169. // Add a decimal button to the last position in the grid.
  170. Button decimalButton = new Button(".");
  171.
  172. // We adopt convention that appending -1 results in decimal
  173. // being placed in the input field.
  174. decimalButton.addActionListener((e) -> {append(-1);});
  175. numbers.addComponent(decimalButton);
  176.
  177. f.addComponent(BorderLayout.CENTER, numbers);
  178.
  179. // Set up container for the command buttons (+, -, *, etc..)
  180. // We will place this in the east section in a grid layout.
  181. Container commands = new Container();
  182. commands.setPreferredW(Display.getInstance().getDisplayWidth()/4);
  183. commands.setLayout(new GridLayout(4,1));
  184. Button clear = new Button("C");
  185. clear.addActionListener((e) -> {clear();});
  186. commands.addComponent(clear);
  187.
  188. Button plus = new Button("+");
  189. plus.addActionListener((e) -> {setOp('+');});
  190. commands.addComponent(plus);
  191.
  192. Button minus = new Button("-");
  193. minus.addActionListener((e) -> {setOp('-');});
  194. commands.addComponent(minus);
  195.
  196. Button mult = new Button("x");
  197. mult.addActionListener((e) -> {setOp('*');});
  198. commands.addComponent(mult);
  199.
  200. Button div = new Button("/");
  201. div.addActionListener((e) -> {setOp('/');});
  202. commands.addComponent(div);
  203.
  204. Button eq = new Button("=");
  205. eq.addActionListener((e) -> {setOp('=');});
  206. commands.addComponent(eq);
  207.
  208.
  209. f.addComponent(BorderLayout.EAST, commands);
  210.
  211.
  212. // Show the form.
  213. f.show();
  214.
  215.
  216. }
  217.
  218. public void stop() {
  219. current = Display.getInstance().getCurrent();
  220. }
  221.
  222. public void destroy() {
  223. }
  224.
  225. }

To run/build this, you just need Eclipse, NetBeans, or Idea IntelliJ with the free NetBeans Codename One plugin installed.

I have included the full Netbeans project in the ZIP file attachment so you should be able to download it and run/build it directly in NetBeans.
