How to Create a Round Button in VB.Net

Submitted by janobe on Wednesday, September 18, 2019 - 11:52.
In this tutorial, I will teach you how to create a round button in vb.net. This method has the ability to remove the sharpen the edge of a button that makes it round depends on the value that you put. This is a simple method, then it is easy to follow.

Creating an Application

Step 1

Open Microsoft Visual Studio 2015 and create a new windows form application for visual basic. figure 1

Step 2

Do the form just like shown below. figure 2

Step 3

Press F7 to open the code editor. After that, create a method for creating a round button.
  1.
  2.     Private Sub RoundButton(btn As Button)
  3.
  4.         btn.FlatStyle = FlatStyle.Flat
  5.         btn.FlatAppearance.BorderSize = 0
  6.         btn.BackColor = Color.Red
  7.         btn.ForeColor = Color.White
  8.         btn.Cursor = Cursors.Hand
  9.         btn.Font = New Font("Century Gothic", 14)
  10.
  11.         Dim Raduis As New Drawing2D.GraphicsPath
  12.
  13.         Raduis.StartFigure()
  14.         'appends an elliptical arc to the current figure
  15.         'left corner top
  16.         Raduis.AddArc(New Rectangle(0, 0, 20, 20), 180, 90)
  17.         'appends a line segment to the current figure
  18.         Raduis.AddLine(10, 0, btn.Width - 20, 0)
  19.         'appends an elliptical arc to the current figure
  20.         'right corner top
  21.         Raduis.AddArc(New Rectangle(btn.Width - 20, 0, 20, 20), -90, 90)
  22.         'appends a line segment to the current figure
  23.         Raduis.AddLine(btnRound.Width, 20, btn.Width, btn.Height - 10)
  24.         'appends an elliptical arc to the current figure
  25.         'right corner buttom
  26.         Raduis.AddArc(New Rectangle(btn.Width - 25, btn.Height - 25, 25, 25), 0, 90)
  27.         'appends a line segment to the current figure
  28.         'left corner bottom
  29.         Raduis.AddLine(btn.Width - 10, btn.Width, 20, btn.Height)
  30.         'appends an elliptical arc to the current figure
  31.         Raduis.AddArc(New Rectangle(0, btn.Height - 20, 20, 20), 90, 90)
  32.         'Close the current figure and start a new one.
  33.         Raduis.CloseFigure()
  34.         'set the window associated with the control
  35.         btnRound.Region = New Region(Raduis)
  36.     End Sub
Write the following codes to execute the method in the first load of the form.

Step 4

  1.
  2.     Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
  3.         RoundButton(btnRound)
  4.     End Sub

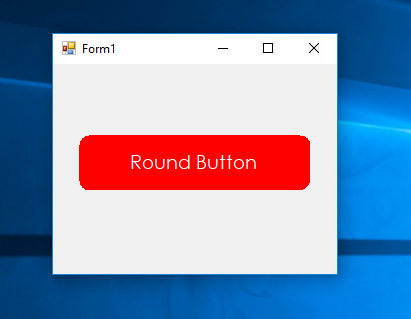

Output :

output The complete source code is included. You can download it and run it on your computer. For any questions about this article. You can contact me @ Email – [email protected] Mobile No. – 09305235027 – TNT Or feel free to comment below.
