Login Form Using Visual Basic 2010 with Embbeded database Microsoft Access Tutorial

Submitted by:
Visitors have accessed this post 1543 times.

In this source code you will learn on how to create a login form and connect VB.net to Microsoft Access.

Creating Database
- First you create a database in microsoft access
- copy what is on the image shown above.

Step 1
Open Microsoft Visual Studio 2010 and create a new windows form application for vb.
Open VBStep 2

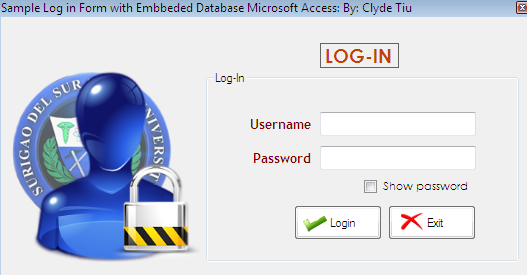

Create your User Interface.
U.IStep 3
Connect VB to MS ACCESS
Step 1Step 2Step 3Step 4Step 5Step 4
Code for Log in Button

  1. Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
  2. Dim con As New System.Data.OleDb.OleDbConnection("Provider = Microsoft.jet.OleDB.4.0;Data Source = " & Application.StartupPath & "\datastorage.mdb;")
  3. Dim cmd As OleDbCommand = New OleDbCommand( _
  4. "SELECT * FROM logininfo WHERE Username = '" & _
  5. TextBox1.Text & "' AND [Password] = '" & txtPassword.Text & "' ", con)
  7. con.Open()
  9. Dim sdr As OleDbDataReader = cmd.ExecuteReader()
  11. If (sdr.Read() = True) Then
  12. MessageBox.Show("You are Now Logged In")
  13. frm1.Show()
  14. TextBox1.Focus()
  15. TextBox1.Clear()
  16. txtPassword.Clear()
  18. Me.Hide()
  19. Else
  20. MessageBox.Show("Invalid Username or Password!")
  21. End If
  22. End Sub

Code for cancel button

  1. If MsgBox("Do you want to exit?", vbYesNo + vbQuestion) = vbYes Then
  2. Application.Exit()
  3. End If
  5. Code for show password check box:
  7. <vbnet>
  8. If CheckBox1.Checked = True Then
  9. txtPassword.PasswordChar =""
  10. Else
  11. txtPassword.PasswordChar = "•"
  12. End If

Hope you learn basic coding guys .... if you have questions contact me:

Tnt Number : 09096510899
Globe : 09454339345
gmail : [email protected]
Facebook : Clyde Chectopher A. Tiu
