Stock Inventory System: Creating the Stock Master

Submitted by joken on Monday, November 11, 2013 - 21:14.

In this tutorial, I’m going to show you how to create a stock master. This stock master will cater all the data entry for the new acquired stocks or Item(s). And the loading, updating and deleting of a specific stocks or Items. To start in this lesson, first we need to open our project called “Stockinven”. Then, were going to add new form and we will name it as “Stock Master”. To do this, go to solution explorer right click the project name, then point the mouse pointer to “Add” then choose “Windows Form”. And it looks like as shown below:

After creating the form for Stock Master, you need to set the Name Property of all then design it, and the stock master will looks like as shown below.

To test this application, we need to set first the Stock Master to be the first form to load when we run the program. To do this, here are the following steps:

1. On the menu bar, click the Project.
2. And select Stockinven Properties.

3. Then the properties of stockinven will show.
4. Next, click the ApplicationTabbed.
5. Then on the Startup form.
6. Choose Stock Master.
7. Then press “F5” to test your program.

At this time, we will be going to manually populate the following combobox.

For color, here are the items:
Black,White,Red,Blue,Green,Violet,Brown,Purple

For bbrand here are the items:
Toshiba,Samsung,Dell,Sony,Polytron,Acer,Labtech,Red Fox

For Category, Here are the following items:
Computer parts, School supplies, Consumables, Books

And for Unit and quantity:
Set, Kilograms, Grams, Yard, Piece, Box

Next, let’s start adding code to our application. First Double click the txtprice and add the following code:

This code will activate when you input some value to the txtprice. And it will be computted if the input is numeric else it will be reset to nothing.

'it check if the value of txtprice is not numeric
If Not IsNumeric(txtprice.Text) Then
	txtprice.Text = ""
Else
	Dim total As Double
	'it computes for total price
	total = FormatNumber(Val(txtprice.Text), 2) * Val(txtnumqty.Text)
	'it passed the value to txttotprice
	txttotprice.Text = FormatNumber(total, 2)
End If

Then, were we going to copy some for database connectivity from form1. And we will paste the declaration of variables below the public class and the connection string inside the Stock_Master_load sub. And the code we now look like as shown below:

Public Class Stock_Master
    Dim con As New OleDb.OleDbConnection


    Private Sub Stock_Master_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        con.ConnectionString = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=" & Application.StartupPath & "\stocksdb.mdb"
    End Sub
    Private Sub txtprice_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles txtprice.TextChanged
        'it check if the value of txtprice is not numeric
        If Not IsNumeric(txtprice.Text) Then
            txtprice.Text = ""
        Else
            Dim total As Double
            'it computes for total price
            total = FormatNumber(Val(txtprice.Text), 2) * Val(txtnumqty.Text)
            'it passed the value to txttotprice
            txttotprice.Text = FormatNumber(total, 2)
        End If
    End Sub
End Class

This time, double click the save button and add the following code:
The code below will do the insertion of data inputted bby the user and store it into the database.

Dim result As Integer
'we declare cmd to represent an SQL Statements or a stored procedure
'to execute against a data source
Dim cmd As New OleDb.OleDbCommand
'gather all information for item description
Dim a As String
a = "Color: " & cbColor.SelectedItem & " " & "Brand: " & cbBrand.SelectedItem & " " & "Other Desc: " & txtitemdescription.Text

Try
	Dim sql As String
	'we set up an sql statement intended for inserting a data
	sql = "INSERT INTO tblitemmaster(itemname, itemdescription, " & _
		" itemremarks, itembarcodeno, itemcategory, itemnoqty,itemavailqty, " & _
		" itemqty, itempricce, itemtotalprice, dateencoded) " & _
		" VALUES('" & txtitemname.Text & "'," & _
		"'" & a & "','" & txtitemremarks.Text & "'," & _
		"'" & txtitembarcode.Text & "','" & cbcategory.SelectedValue & "'," & _
		"'" & txtnumqty.Text & "','" & txtnumqty.Text & "','" & cbunitqty.SelectedValue & "'," & _
		"" & Val(txtprice.Text) & "," & Val(txttotprice.Text) & ", " & _
		" #" & DateValue(itemdate.Value) & "#)"
	'open the connection
	con.Open()

	With cmd
		.Connection = con
		.CommandText = sql
		'execute query and return the affected rows
		result = cmd.ExecuteNonQuery
		'check if result is zero it means that no data has inserted
		If result = 0 Then
			MsgBox("No Data has been Inserted!")
		Else
			'else greater than one it insert the data successfully
			MsgBox("New Data is inseted succesfully!")
		End If
	End With

Catch ex As Exception
	'if something went wrong, it will give a message about the error
	MsgBox(ex.Message, MsgBoxStyle.Information)
End Try
'close the connection
con.Close()

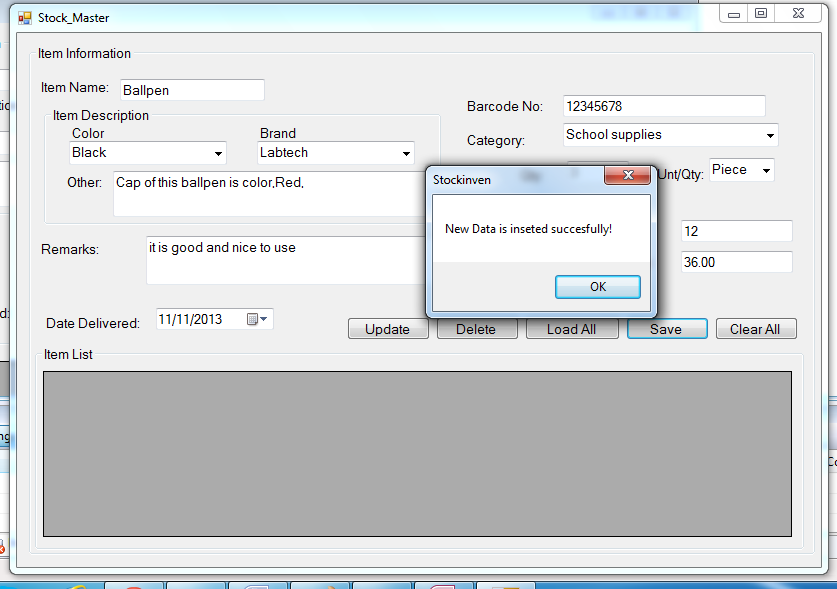

After adding the code above, press “F5” to test the application. then fill up all the fields provided, then click the save button. If successfully save, a message box will appear. And the output now will look like as shown below:

And my next lesson will focus on loading, updating and deleting of an item.
