CHAPTER 3

METHODOLOGY

This chapter focuses on the steps used concerning the development of the Proposed System for SDSSU HOLLISTIC PAYROLL SYSTEM. The Data were gathered from SdssuCantilan Campus, Surigao Del Sur through interviews, system development and system implementation.

Research Design

The project developmental project design where the researcher designed a system that provides a well-managed and secured SDSSU HOLISTIC PAYROLL SYSTEM. Considering the timeframe of the project, the researcher follows the Rapid Application Development (RAD) methodology, since the concept develop a faster and an easy way during payroll time

The Rapid Application Development (RAD) is a software development methodology that uses a minimal planning in favor rapid prototyping. A protype is a working model that has a function of equivalent to a component of the product.

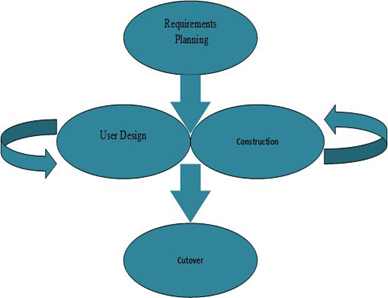

Figure 1.0 RAD Model of the proposed system

RAD divided the process into four distinct phases, those are the following:

1. Requirement planning phase – this phase combines elements of the system planning and system analysis phases of the System Development Life Cycle (SDLC).
2. User design phase – during this phase, user interact with systems analysts and develop models insuring the system is a user friend and easy to handle by the administrator. User design is a continuous interactive process that allows administrators to understand, modify and eventually approve a working model of the system that meets their needs.
3. Construction phase – this phase focused on program and application development task similar to the SDLC. However, administrator continue to participate and can still suggest changes or improvements of the system. It tasks included programming and application development, coding unit- integration and system testing.
4. Cutover phase – this resembles to the final task in the SDLC implementation phase, including data conversion, testing and user training. Compared with the traditional methods the entire process been compressed. As a result, the new system is built, delivered, and placed in a proper operation by the administrator.

Research Instrument

The researcher conducted an interview in proposing this system. This involved the collection of data through direct verbal interaction to be able to know the real problem encountered during payroll time.

Data Gathering Procedures

This research started with a letter to the Adviser of the researchers, then, researchers made a letter of asking an interview that should be approved by the Admin Head. As the permission granted, the researchers made an interview with a set of related questions in order to gather accurate information, opinions and suggestions about the payroll.

Data Analysis

From the data gathered, the researchers found out that the SdssuCantilan Campus has encountered a hassle way of informing during the payroll time and from that the researchers decided to create and develop anSdssuHollistic Payroll System.

TECHNICAL DESIGN OF THE STUDY

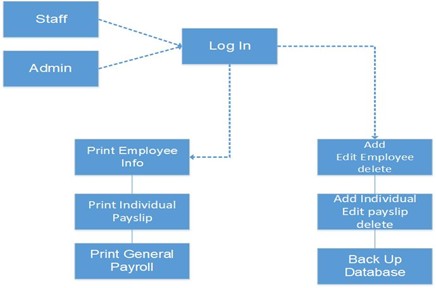

Figure 2.0 Technical Design of the study

Description

Daily employee hours worked are recorded on the timesheets at the end of the month, this timesheets are keyed into the computer, validated, and recorded in a transaction file. Before theupdate, this file is sorted into database. This sorted transaction file is then used tocalculate salaries and update the master file.The process involves reading the master record sequentially along with the transaction file.Updated master records are written to a new master file.

This System is supposed to calculate the monthly salariesfor two different types of employees: Part-time and Full-time. Thefull-time employees’ monthly basic salary is fixed, based ontheir Employee Grade. The part-time employee’ salary is basedon the number of hours they worked.

Figure 3.0 Component Diagram

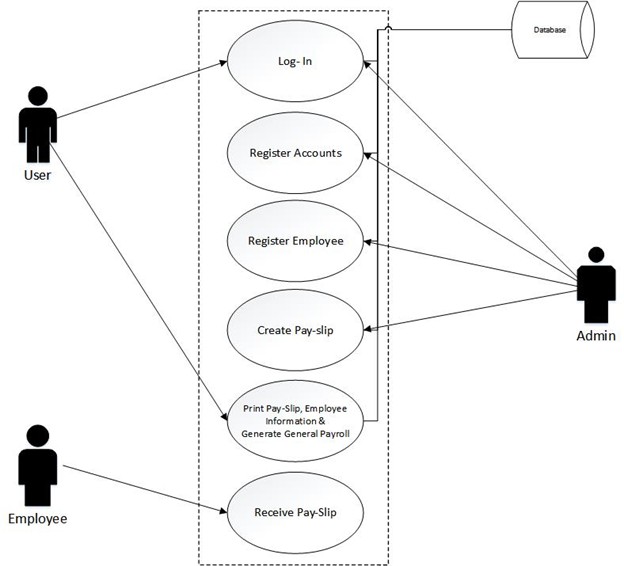

Figure 4.0 Use Case Model of the Proposed System

Requirements

In this section, the researchers described the technical terms of Hardware and Software that are essential in this actual project.

Technical Background of the Study

The proponents described the following system components to fulfill its functionality requirements. The SDSSU Hollistic Payroll System: A Stand-alone system that is created in VB. NET and MS Access Database forth employee of sdssu needs these following hardware and software specification, these are the requirements:

Hardware Specification

Table 1 Hardware Specification

Software Specification

Table 2 Software Specification

REQUIREMENTS ANALYSIS

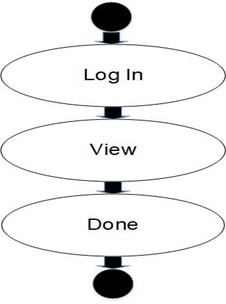

1. Log-In

This is the beginning of the process, where the users are required to log in to be able for them to use it.
Table 1. Use Case 1 – Log In

REQUIREMENTS ANALYSIS

• Employee Register

This is the process, where the admin can add or register a new employee.
Table 2. Use Case 2 – Register Employee

• Printing

This is the process where the system in the admin will print out the salary of the employee.
Table 3. Use Case 3 –Printing

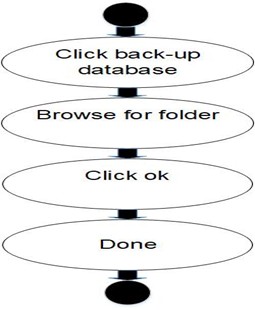

• Back-Up Database

This is the process where the in charge of the system will back-up the data`s in case of data loss.
Table 5. Use Case 5 – Backup database
