Calculating Cells Value in DataGridView Using VB.Net

Submitted by janobe on Wednesday, September 19, 2018 - 17:06.

In this tutorial, I will teach you how to calculate the cells value in the datagridview using vb.net. This method will help you how to assign grades and points in the specific cells when entering the score in another cell. See the step by step below for your guide.

Creating Applicaion

Step 1

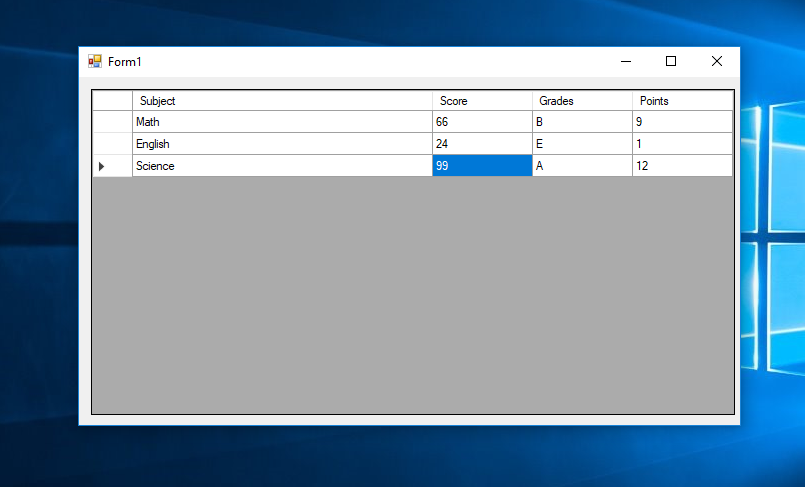

Open Microsoft Visual Studio 2015 and create a new windows form application. After that, do the form just like shown below. dtg1

Step 2

Double click the form and do the following code for adding data in the datagridview.

With DataGridView1
            .Rows.Add("Math")
            .Rows.Add("English")
            .Rows.Add("Science")
        End With

Step 3

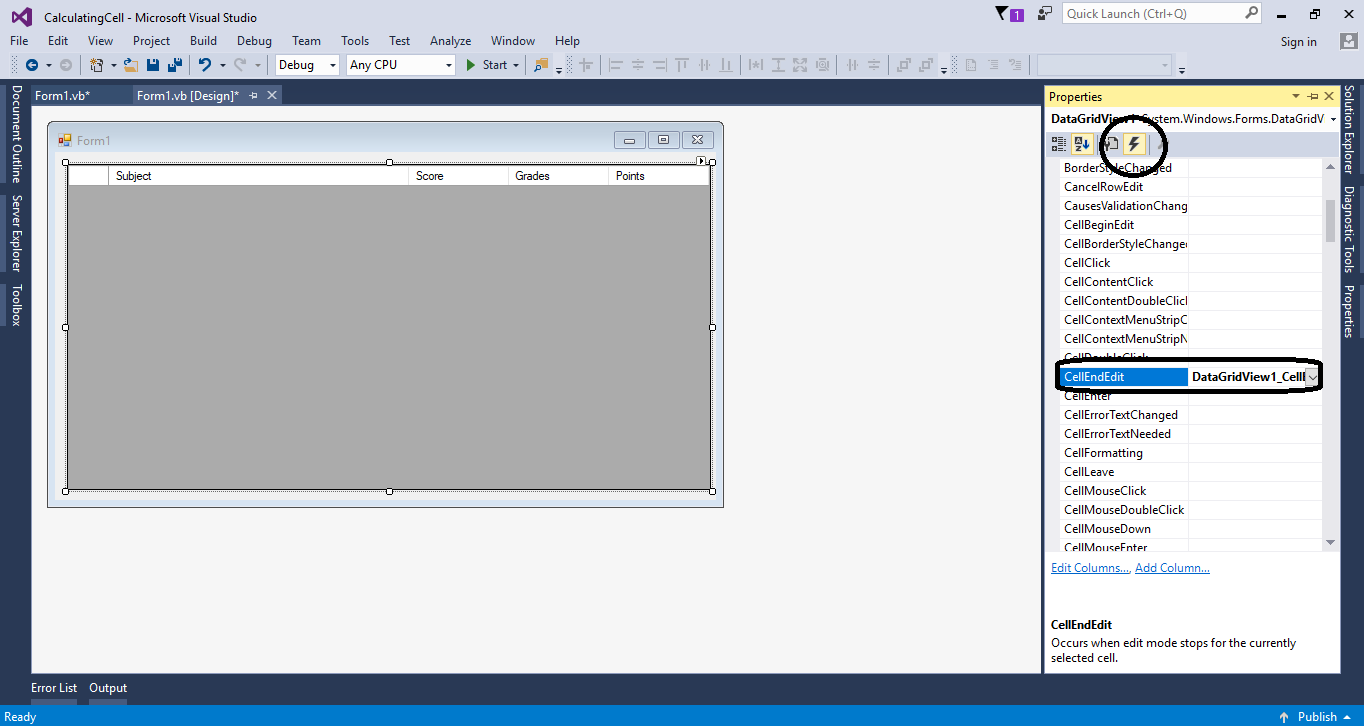

Go back to the design views and click the datagridview. In the properties, click events just like the lightning bolt and double click cellendedit event handler. dtg2

Step 4

Do the following code inside the method for calculating the score, grades and points.

  Try
            Dim colIndex As Integer = e.ColumnIndex
            If colIndex = 1 Then
                Dim DataGridView1cell As Integer = DataGridView1.CurrentRow.Cells(1).FormattedValue
                Select Case DataGridView1cell
                    Case 0 To 24
                        DataGridView1.CurrentRow.Cells(2).Value = "E"
                        DataGridView1.CurrentRow.Cells(3).Value = "1"

                    Case 25 To 29
                        DataGridView1.CurrentRow.Cells(2).Value = "D-"
                        DataGridView1.CurrentRow.Cells(3).Value = "2"

                    Case 30 To 34
                        DataGridView1.CurrentRow.Cells(2).Value = "D"
                        DataGridView1.CurrentRow.Cells(3).Value = "3"

                    Case 35 To 39
                        DataGridView1.CurrentRow.Cells(2).Value = "D+"
                        DataGridView1.CurrentRow.Cells(3).Value = "4"

                    Case 40 To 44
                        DataGridView1.CurrentRow.Cells(2).Value = "C-"
                        DataGridView1.CurrentRow.Cells(3).Value = "5"

                    Case 45 To 54
                        DataGridView1.CurrentRow.Cells(2).Value = "C"
                        DataGridView1.CurrentRow.Cells(3).Value = "6"

                    Case 55 To 59
                        DataGridView1.CurrentRow.Cells(2).Value = "C+"
                        DataGridView1.CurrentRow.Cells(3).Value = "7"

                    Case 60 To 64
                        DataGridView1.CurrentRow.Cells(2).Value = "B-"
                        DataGridView1.CurrentRow.Cells(3).Value = "8"

                    Case 65 To 69
                        DataGridView1.CurrentRow.Cells(2).Value = "B"
                        DataGridView1.CurrentRow.Cells(3).Value = "9"

                    Case 70 To 74
                        DataGridView1.CurrentRow.Cells(2).Value = "B+"
                        DataGridView1.CurrentRow.Cells(3).Value = "10"

                    Case 75 To 79
                        DataGridView1.CurrentRow.Cells(2).Value = "A-"
                        DataGridView1.CurrentRow.Cells(3).Value = "11"

                    Case 80 To 100
                        DataGridView1.CurrentRow.Cells(2).Value = "A"
                        DataGridView1.CurrentRow.Cells(3).Value = "12"

                    Case Else
                        DataGridView1.CurrentRow.Cells(2).Value = "0"
                        DataGridView1.CurrentRow.Cells(3).Value = "0"
                End Select
            End If
        Catch ex As Exception
            MsgBox(ex.Message)
        End Try

The complete sourcecode is included. You can download it and run it on your computer. For more question about this article. You can contact me @ Email – [email protected] Mobile No. – 09305235027 – TNT FB Account – https://www.facebook.com/onnaj.soicalap Or feel free to comment below.
